16S rRNA Microbiome Analysis - Part 1

Author

Eleana Cabello

Published

June 5, 2025

Overview

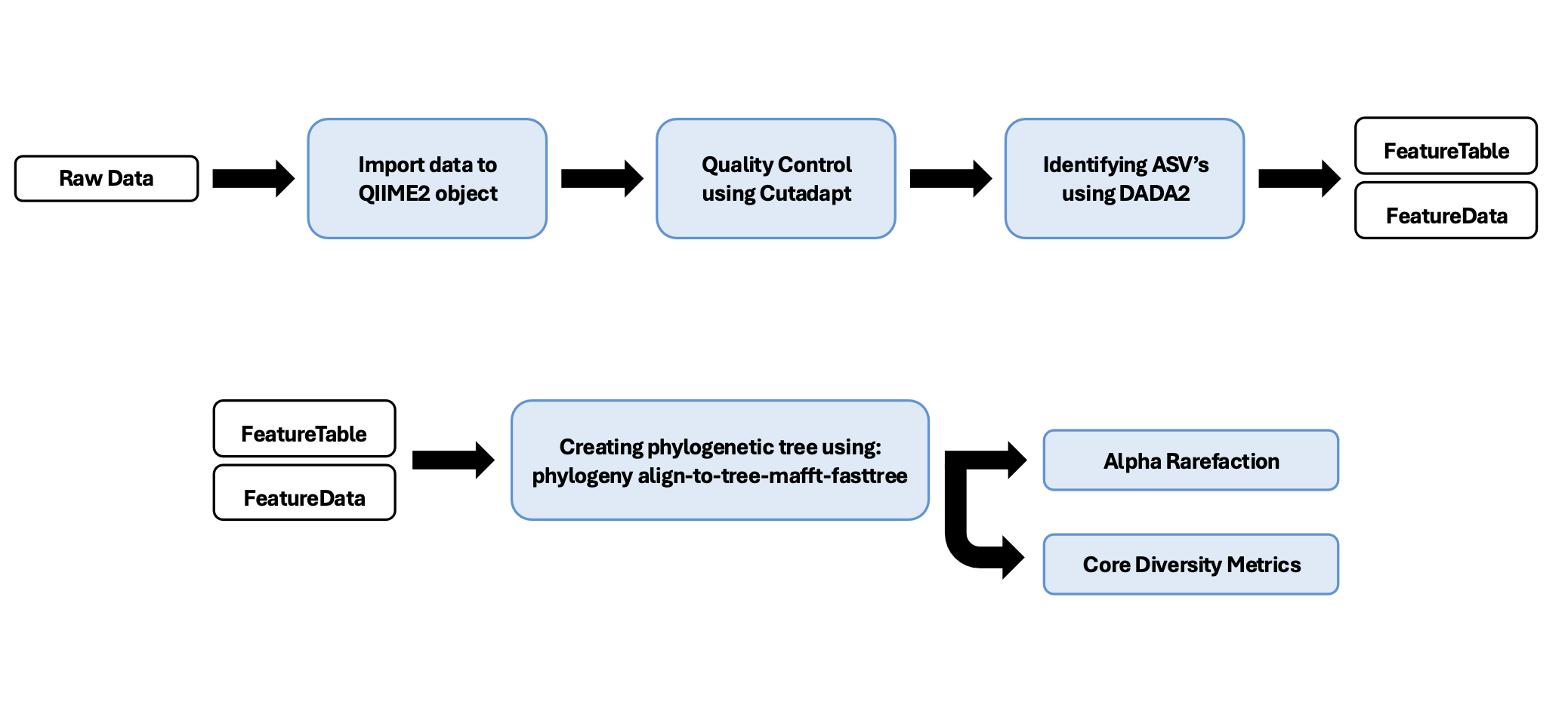

Pipeline Outline

0-File Management and Making Manifest for Importing

qiime_out_dir="output"
mkdir $qiime_out_dir
qiime metadata tabulate \
  --m-input-file sample-metadata.tsv \
  --o-visualization sample-metadata-viz.qzv

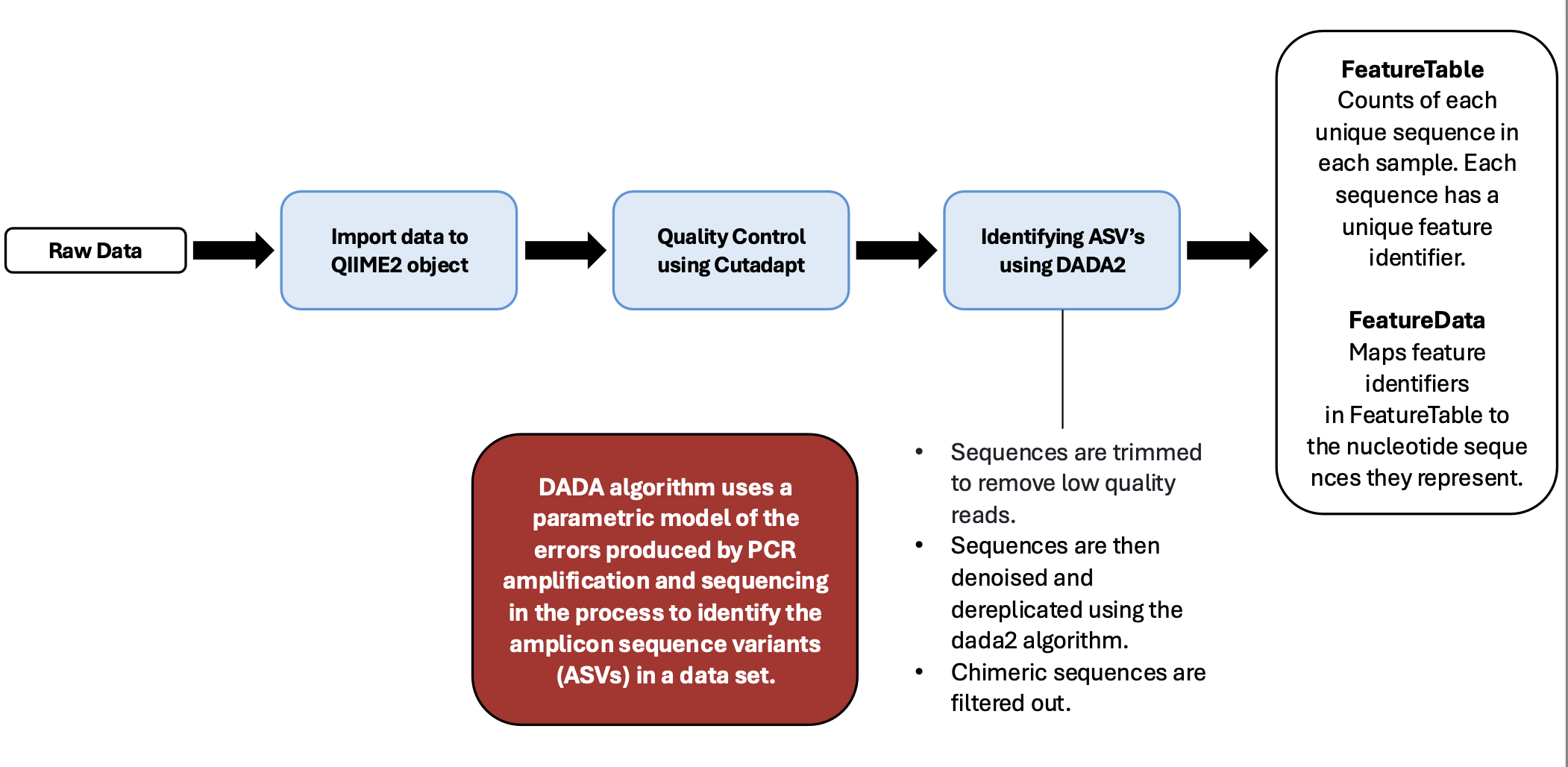

1-Importing Sequencing Data to QIIME Object

import_seqs_dir="output/1_imported_seqs"
manifest_file= ""

mkdir $import_seqs_dir

qiime tools import \
    --type 'SampleData[PairedEndSequencesWithQuality]' \
    --input-path $manifest_file \
    --input-format PairedEndFastqManifestPhred33V2 \
    --output-path $import_seqs_dir/demux-pairedend.qza

qiime demux summarize \
    --i-data $import_seqs_dir/demux-pairedend.qza \
    --o-visualization $import_seqs_dir/demux-pairedend.qzv

2-Quality Control of Sequences

input_seqs="output/1_imported_seqs/demux-pairedend.qza"
f_primer=""
r_primer=""
error_rate=0.1
min_length=100
num_cores=22

trimmed_dir="output/2_trimmed_seqs"
mkdir $trimmed_dir

qiime cutadapt trim-paired \
    --i-demultiplexed-sequences $input_seqs \
    --p-cores $num_cores \
    --p-front-f $f_primer \
    --p-front-r $r_primer \
    --p-error-rate $error_rate \
    --p-minimum-length $min_length \
    --o-trimmed-sequences $trimmed_dir/trimmed-demux-pairedend.qza \
    --verbose \
  &> $trimmed_dir/trimmed.log

qiime demux summarize \
    --i-data $trimmed_dir/trimmed-demux-pairedend.qza \
    --o-visualization $trimmed_dir/trimmed-demux-pairedend.qzv

3-Feature Table Construction of Amplicon Variance Sequences (ASVs) using DADA2

input_trimmed_seqs="output/2_trimmed_seqs/trimmed-demux-pairedend.qza"
num_cores=20
num_reads_learn=1000000
trunc_len_f=282
trunc_len_r=234

dada2_res_dir="output/3_denoised_seqs"
mkdir $dada2_res_dir

qiime dada2 denoise-paired \
    --i-demultiplexed-seqs $input_trimmed_seqs \
    --p-trunc-len-f $trunc_len_f \
    --p-trunc-len-r $trunc_len_r \
    --p-n-threads $num_cores \
    --p-n-reads-learn $num_reads_learn \
    --o-table $dada2_res_dir/feat-table.qza \
    --o-representative-sequences $dada2_res_dir/rep-seqs.qza \
    --o-denoising-stats $dada2_res_dir/denoising-stats.qza \
    --verbose \
    &> $dada2_res_dir/denoising_dada2.log

qiime metadata tabulate \
    --m-input-file $dada2_res_dir/denoising-stats.qza \
    --o-visualization $dada2_res_dir/denoising-stats.qzv

qiime feature-table summarize \
    --i-table $dada2_res_dir/feat-table.qza \
    --o-visualization $dada2_res_dir/feat-table.qzv

qiime feature-table tabulate-seqs \
  --i-data  $dada2_res_dir/rep-seqs.qza \
  --o-visualization  $dada2_res_dir/rep-seqs.qzv

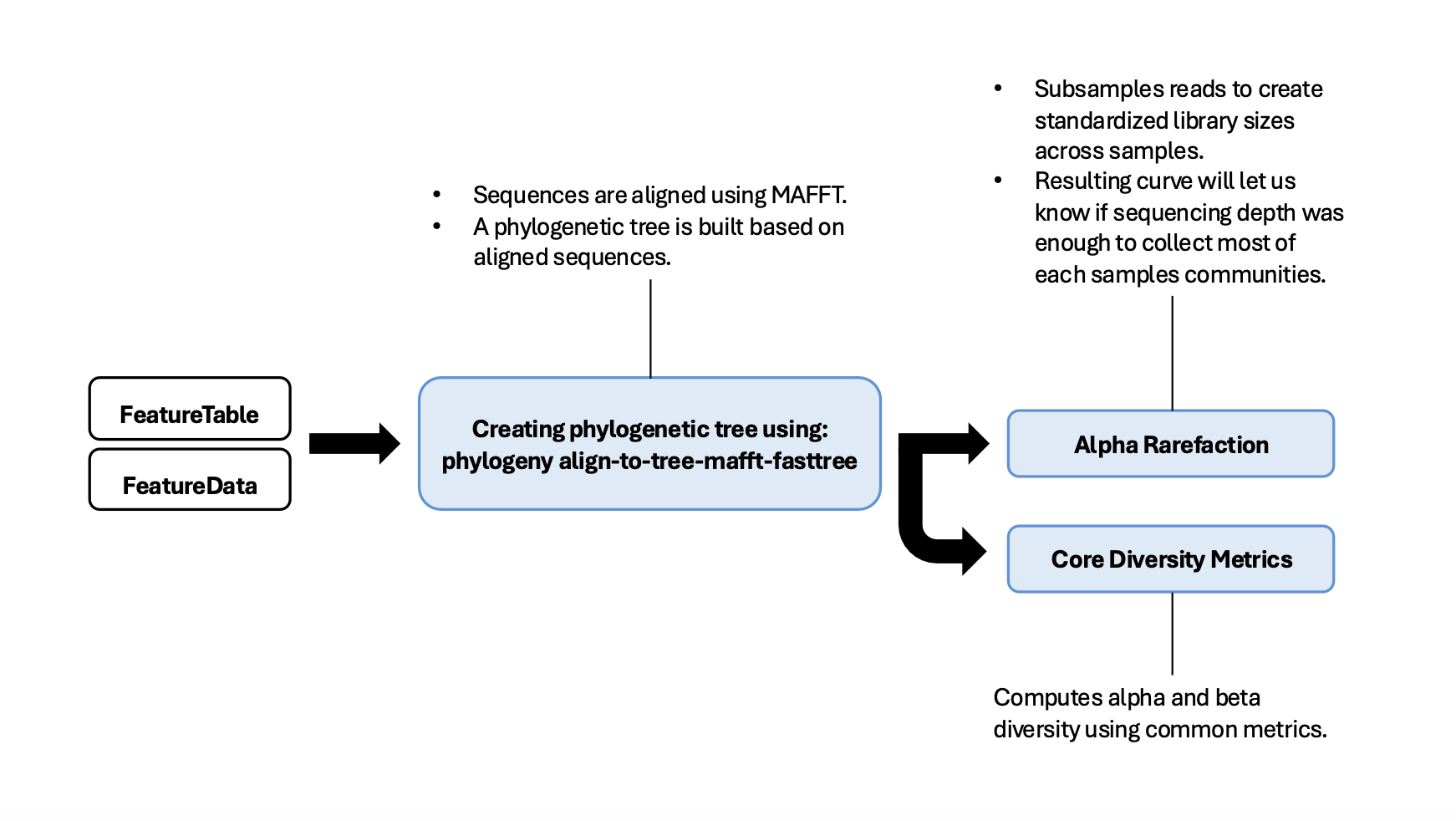

4-Phylogenectic Tree

phylo_tree_dir="output/4_phylogenetic_tree"
mkdir $phylo_tree_dir

qiime phylogeny align-to-tree-mafft-fasttree \
  --i-sequences $dada2_res_dir/rep-seqs.qza \
  --o-alignment $phylo_tree_dir/aligned-rep-seqs.qza \
  --o-masked-alignment $phylo_tree_dir/masked-aligned-rep-seqs.qza \
  --o-tree $phylo_tree_dir/unrooted-tree.qza \
  --o-rooted-tree $phylo_tree_dir/rooted-tree.qza

5-Alpha Diversity, Beta Diversity, and Alpha Refraction

alpha_beta_dir="output/5_alpha_beta_div_rarefac"
mkdir $alpha_beta_dir

qiime diversity core-metrics-phylogenetic \
  --i-phylogeny  $phylo_tree_dir/rooted-tree.qza \
  --i-table table.qza \
  --p-sampling-depth 1103 \
  --m-metadata-file sample-metadata.tsv \
  --output-dir $alpha_beta_dir/diversity-core-metrics-phylogenetic
qiime diversity alpha-rarefaction \
  --i-table table.qza \
  --i-phylogeny rooted-tree.qza \
  --p-max-depth 4000 \
  --m-metadata-file sample-metadata.tsv \
  --o-visualization alpha-rarefaction.qzv

FULL SCRIPT

#!/bin/bash
#SBATCH --partition=ircfhp
#SBATCH --nodelist=c923
#SBATCH --container=el9hw
#SBATCH --nodes=1
#SBATCH --ntasks=1
#SBATCH --cpus-per-task=10
#SBATCH --mem=30G
#SBATCH --chdir=/home
#SBATCH --output=qc_%A_%a_stdout.txt
#SBATCH --error=qc_%A_%a_stderr.txt
#SBATCH --mail-user=eleana-cabello@ouhsc.edu
#SBATCH --mail-type=ALL


#==============================================================================
# BASH Strict mode (i.e. "fail fast" to reduce hard-to-find bugs)
set -e          # EXIT the script if any command returns non-zero exit status.
set -E          # Make ERR trapping work inside functions too.
set -u          # Variables must be pre-defined before using them.
set -o pipefail # If a pipe fails, returns the error code for the failed pipe
                #  even if it isn't the last command in a series of pipes.
#==============================================================================

 module load QIIME2/2021.8

################################################
STEP 0
################################################
qiime_out_dir="output"
mkdir $qiime_out_dir

qiime metadata tabulate \
  --m-input-file sample-metadata.tsv \
  --o-visualization sample-metadata-viz.qzv

################################################
STEP 1
################################################
import_seqs_dir="output/1_imported_seqs"
manifest_file= ""

mkdir $import_seqs_dir

qiime tools import \
    --type 'SampleData[PairedEndSequencesWithQuality]' \
    --input-path $manifest_file \
    --input-format PairedEndFastqManifestPhred33V2 \
    --output-path $import_seqs_dir/demux-pairedend.qza

qiime demux summarize \
    --i-data $import_seqs_dir/demux-pairedend.qza \
    --o-visualization $import_seqs_dir/demux-pairedend.qzv

################################################
STEP 2
################################################
input_seqs="output/1_imported_seqs/demux-pairedend.qza"
f_primer=""
r_primer=""
error_rate=0.1
min_length=100
num_cores=22

trimmed_dir="output/2_trimmed_seqs"
mkdir $trimmed_dir

qiime cutadapt trim-paired \
    --i-demultiplexed-sequences $input_seqs \
    --p-cores $num_cores \
    --p-front-f $f_primer \
    --p-front-r $r_primer \
    --p-error-rate $error_rate \
    --p-minimum-length $min_length \
    --o-trimmed-sequences $trimmed_dir/trimmed-demux-pairedend.qza \
    --verbose \
  &> $trimmed_dir/trimmed.log

qiime demux summarize \
    --i-data $trimmed_dir/trimmed-demux-pairedend.qza \
    --o-visualization $trimmed_dir/trimmed-demux-pairedend.qzv

################################################
STEP 3
################################################

input_trimmed_seqs="output/2_trimmed_seqs/trimmed-demux-pairedend.qza"
num_cores=20
num_reads_learn=1000000
trunc_len_f=282
trunc_len_r=234

dada2_res_dir="output/3_denoised_seqs"
mkdir $dada2_res_dir

qiime dada2 denoise-paired \
    --i-demultiplexed-seqs $input_trimmed_seqs \
    --p-trunc-len-f $trunc_len_f \
    --p-trunc-len-r $trunc_len_r \
    --p-n-threads $num_cores \
    --p-n-reads-learn $num_reads_learn \
    --o-table $dada2_res_dir/feat-table.qza \
    --o-representative-sequences $dada2_res_dir/rep-seqs.qza \
    --o-denoising-stats $dada2_res_dir/denoising-stats.qza \
    --verbose \
    &> $dada2_res_dir/denoising_dada2.log

qiime metadata tabulate \
    --m-input-file $dada2_res_dir/denoising-stats.qza \
    --o-visualization $dada2_res_dir/denoising-stats.qzv

qiime feature-table summarize \
    --i-table $dada2_res_dir/feat-table.qza \
    --o-visualization $dada2_res_dir/feat-table.qzv

qiime feature-table tabulate-seqs \
  --i-data  $dada2_res_dir/rep-seqs.qza \
  --o-visualization  $dada2_res_dir/rep-seqs.qzv

################################################
STEP 4
################################################

phylo_tree_dir="output/4_phylogenetic_tree"
mkdir $phylo_tree_dir

qiime phylogeny align-to-tree-mafft-fasttree \
  --i-sequences $dada2_res_dir/rep-seqs.qza \
  --o-alignment $phylo_tree_dir/aligned-rep-seqs.qza \
  --o-masked-alignment $phylo_tree_dir/masked-aligned-rep-seqs.qza \
  --o-tree $phylo_tree_dir/unrooted-tree.qza \
  --o-rooted-tree $phylo_tree_dir/rooted-tree.qza

################################################
STEP 5
################################################

alpha_beta_dir="output/5_alpha_beta_div_rarefac"
mkdir $alpha_beta_dir

sampling_depth=""

qiime diversity core-metrics-phylogenetic \
  --i-phylogeny  $phylo_tree_dir/rooted-tree.qza \
  --i-table $dada2_res_dir/feat-table.qza \
  --p-sampling-depth $sampling_depth \
  --m-metadata-file ${manifest_file} \
  --output-dir $alpha_beta_dir/diversity-core-metrics-phylogenetic

max_depth=""

qiime diversity alpha-rarefaction \
  --i-table $dada2_res_dir/feat-table.qza \
  --i-phylogeny $phylo_tree_dir/rooted-tree.qza \
  --p-max-depth $max_depth \
  --m-metadata-file ${manifest_file} \
  --o-visualization $alpha_beta_dir/alpha-rarefaction.qzv
